INDUSTRIAL
$0.00
Made in fine porcelain stoneware, Industrial stands out for its wide range of colors, modular sizes, thickness and finish options. This collection is effective and attractive in any architectural context.
Made in fine porcelain stoneware, Industrial stands out for its wide range of colors, modular sizes, thickness and finish options. This collection is effective and attractive in any architectural context.
Made in fine porcelain stoneware, Industrial stands out for its wide range of colors, modular sizes, thickness and finish options. This collection is effective and attractive in any architectural context.
COLORS

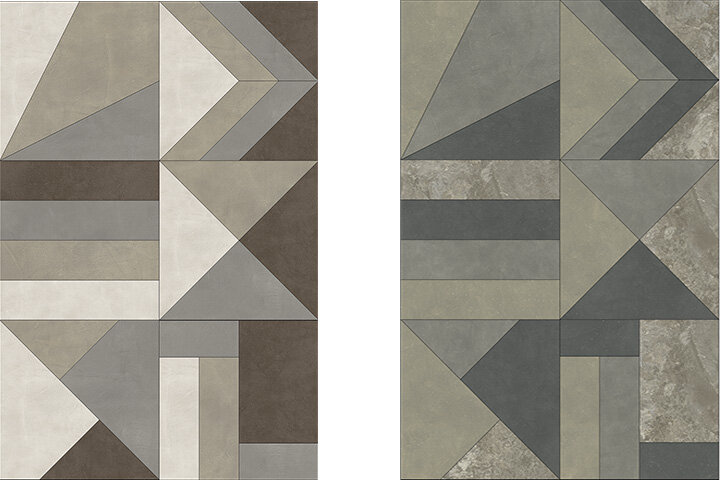

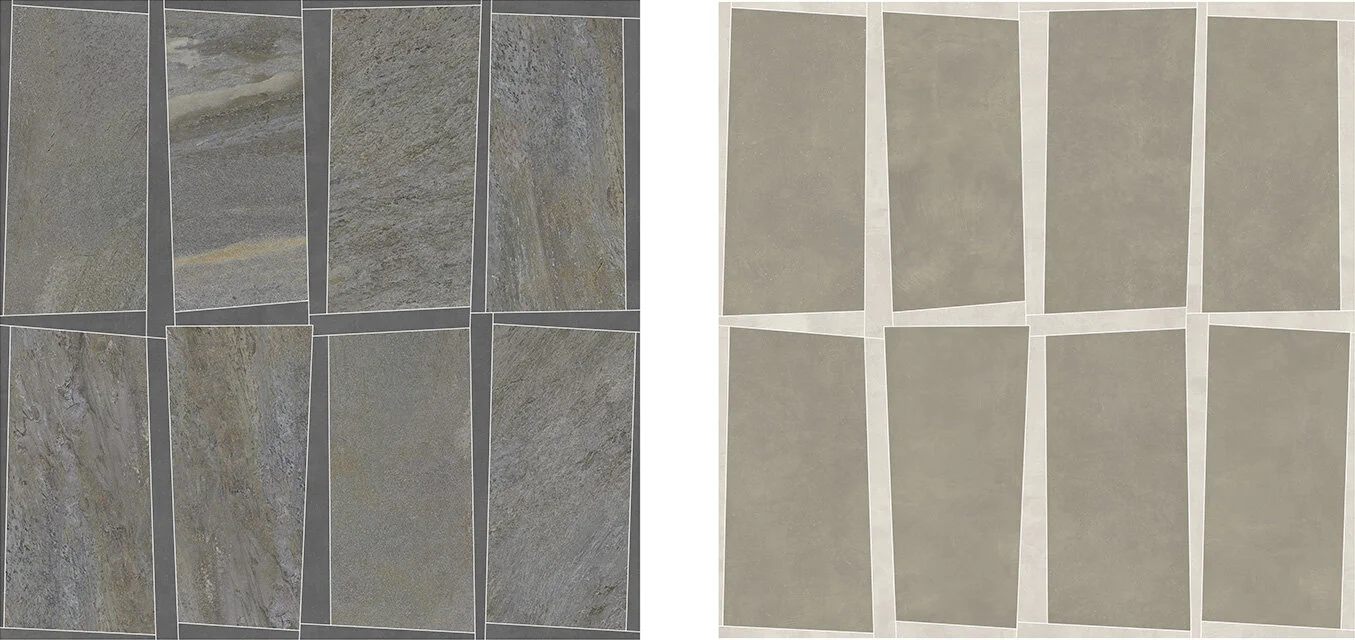

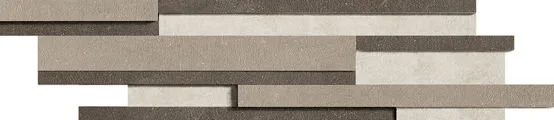

DECORS
DIMENSIONS
| COLOR | SIZE AVAILABILITY | THICKNESS | FINISH |
| Ivory | 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics | 6mm, 10mm, and 20mm(varies based on size and finish chosen) | Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen) |
|---|---|---|---|
| Sage | 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics | 6mm, 10mm, and 20mm(varies based on size and finish chosen) | Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen) |
| Steel | 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics | 6mm, 10mm, and 20mm(varies based on size and finish chosen) | Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen) |
| Plomb | 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics | 6mm, 10mm, and 20mm(varies based on size and finish chosen) | Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen) |
| Taupe | 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics | 6mm, 10mm, and 20mm(varies based on size and finish chosen) | Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen) |
| Moka | 12 X 24, 24 X 24, 24 X 48, 8 x 32, 16 X 32, 32 X 32, 48 X 48, 48 X 95, 48 X 111, 63 X 63, 63 X 126, 12 x 12 Mosaics, 63 x 63 Puzzle Mosaics | 6mm, 10mm, and 20mm(varies based on size and finish chosen) | Matte, R+ptv, Brush-hammered, and Soft(varies based on size chosen) |
TECHNICAL INFO
| PHYSICAL/CHEMICAL PROPERTIES | TEST METHOD | REFERENCE VALUE | DECLARED VALUE |
| Length and width: admitted deviation, in %, of the average size of each tile from the production dimensions | ISO 10545-2 | ± 0.6% (±2 mm) | ± 0.15% |
|---|---|---|---|
| Admitted deviation, in %, of the average thickness of each tile from the production dimensions | ISO 10545-2 | ±5% (±0.5 mm) | ± 5% |
| Maximum straightness deviation, in %, in relation to the corresponding production dimensions | ISO 10545-2 | ±0.5% (±1.5 mm) | ± 0.1% |
| Maximum right-angle deviation, in %, in relation to the corresponding production dimensions | ISO 10545-2 | ± 0.5% (±2 mm) | ± 0.2% |
| Flatness/Warpage | ISO 10545-2 | ± 0.5% (± 2mm) | ± 0.35% |
| Surface quality | ISO 10545-2 | At least 95% of the tiles must be free from visible flaws. | Conforming |
| Amount of water absorbed, in percentage | ISO 10545-3 | E≤0.5% | average value 0.08% |
| Breaking strength in N (thickness < 7.5 mm) | ISO 10545-4 | ≥1300 Newton | average value 3200 N |
| Bending strength in N/mm2 | ISO 10545-4 | >35 N/mm2 | average value 50 N/mm2 |
| Resistance to deep abrasion of unglazed tiles | ISO 10545-6 | <175 mm3 | average value 140 |
| Thermal shock resistance | ISO-10545-9 | - | Resistant |
| Resistance to staining | ISO 10545-14 | - | CI. 3-4 |
| Resistance to low and high concentrations of acids and alkali | UNI EN ISO 10545-13 | Available upon request | ULA-UHA-ULA-ULB Soft |
| Resistance to domestic chemicals and additives for swimming pools | UNI EN ISO 10545-13 | UB Minimum | UA |
| Slip resistance with shoes and without | DIN-51130:2010 and DIN-51097 | - | WITH:R10 Matte, R9 Soft, R11 Brush-hammered WITHOUT: CI A+B Matte, CI. A+B+C Brush-hammered, CI. A Soft |
| Dynamic coefficient of friction (section 9.6 ANSI A 137.1) | DCOF | >0.42 wet | > 0.42 wet Matte |
