MASTERPLAN
Masterplan is the iconic minimalistic stone look that embodies the elegance of an urban style thanks to the slight movement of the graphics and a contemporary color palette. With a broad range of sizes, finishes, and colors, the collection offers complete freedom to design indoor and outdoor spaces as well as in and out transitional areas without stylistic and chromatic discontinuities.
Masterplan is the iconic minimalistic stone look that embodies the elegance of an urban style thanks to the slight movement of the graphics and a contemporary color palette. With a broad range of sizes, finishes, and colors, the collection offers complete freedom to design indoor and outdoor spaces as well as in and out transitional areas without stylistic and chromatic discontinuities.
Masterplan is the iconic minimalistic stone look that embodies the elegance of an urban style thanks to the slight movement of the graphics and a contemporary color palette. With a broad range of sizes, finishes, and colors, the collection offers complete freedom to design indoor and outdoor spaces as well as in and out transitional areas without stylistic and chromatic discontinuities.
| Color | Size Availability | Thickness | Finish |

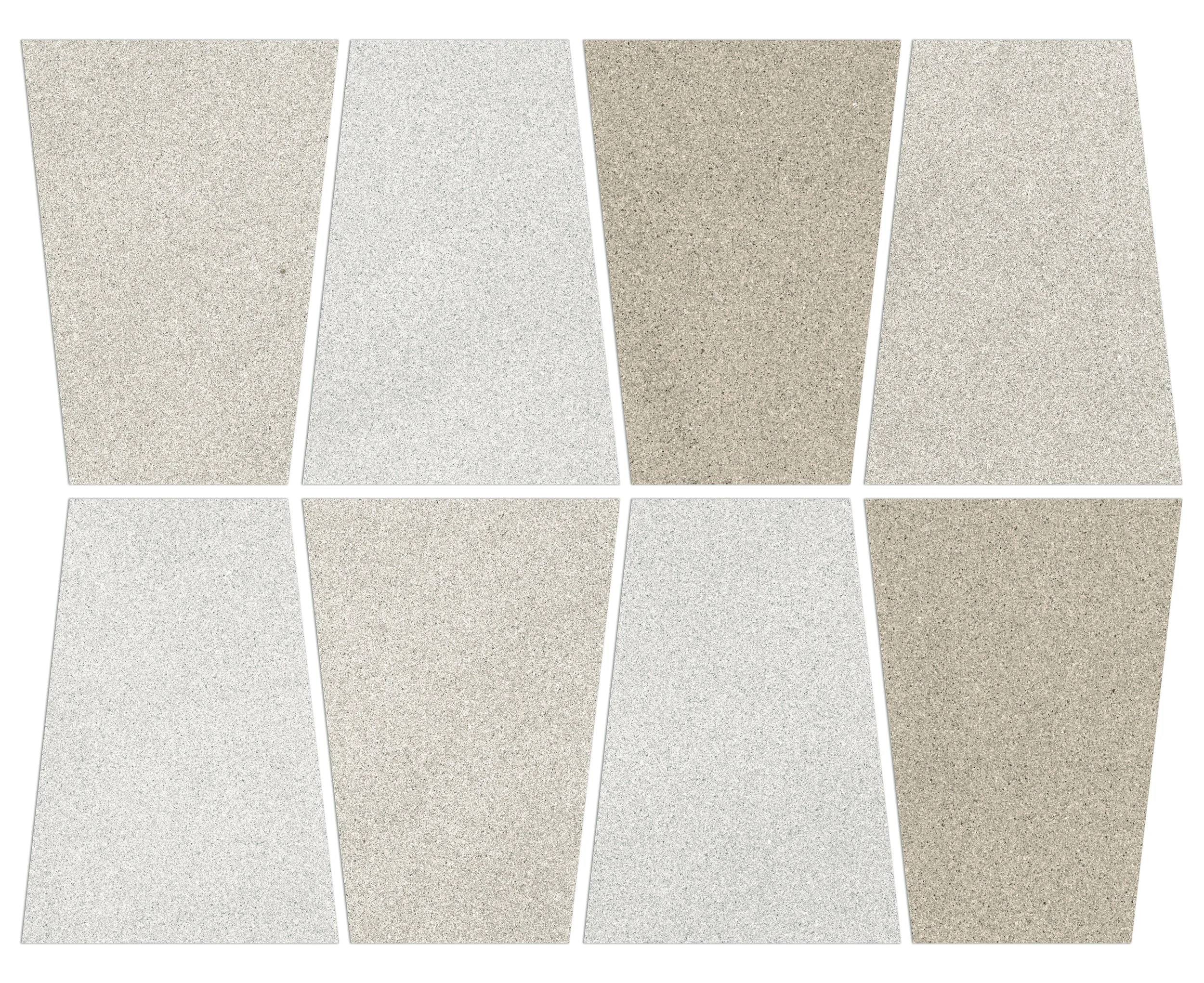

| White Avenue | 12 x 24, 24 x 48, 12 x 12 Mosaic A, 12 x 10 Hex Mosaic, 12 x 12 Geometric Mosaic, 3 x 24 Bullnose, 12 X 24 Paver, 24 x 24 Paver, 12 x 48 Paver, 24 x 48 Paver, 6 x 24 Veneer | 9mm and 20mm Pavers | Matte and Grip (12 x 24 only) |
|---|---|---|---|
| Precious Ivory | 12 x 24, 24 x 48, 12 x 12 Mosaic A, 12 x 10 Hex Mosaic, 12 x 12 Geometric Mosaic, 3 x 24 Bullnose | 9mm | Matte |

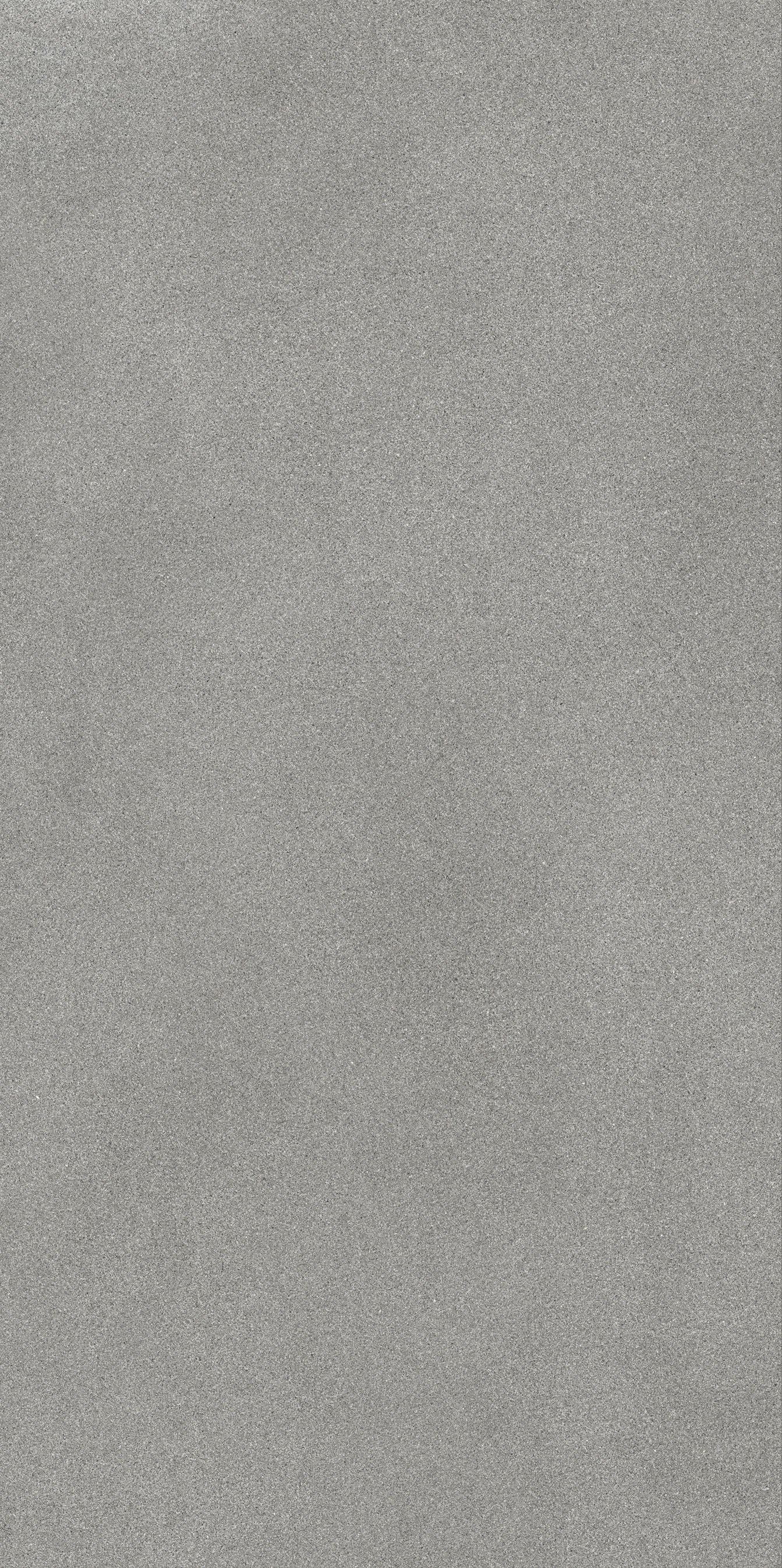

| Cosmopolitan Ash | 12 x 24, 24 x 24, 24 x 48, 12 x 12 Mosaic A, 12 x 10 Hex Mosaic, 12 x 12 Geometric Mosaic, 3 x 24 Bullnose, 12 X 24 Paver, 24 x 24 Paver, 12 x 48 Paver, 24 x 48 Paver, 6 x 24 Veneer | 9mm and 20mm Pavers | Matte and Grip (12x24 only) |
| Metro Gray | 12 x 24, 12 x 12 Mosaic A, 12 x 10 Hex Mosaic, 12 x 12 Geometric Mosaic, 3 X 24 Bullnose | 9mm | Matte |
| Artistic Beige | 12 x 24, 12 x 12 Mosaic A, 12 x 10 Hex Mosaic, 12 x 12 Geometric Mosaic, 12 x 24 Paver, 24 x 24 Paver, 6 x 24 Veneer, 3 x 24 Bullnose | 9mm and 20mm Pavers | Matte |
| Fashion Black | 12 x 24, 12 x 12 Mosaic A, 12 x 10 Hex Mosaic, 12 x 12 Geometric Mosaic, 12 x 24 Paver, 24 x 24 Paver, 12 x 48 Paver, 24 x 48 Paver, 3 x 24 Bullnose | 9mm and 20mm Pavers | Matte |
| Physical properties | Test ASTM | North American Standard | Results |
| Water absorption* | C373 | ≤ 0.5% | Comply with ANSI A 137.1 |
|---|---|---|---|
| Resistance to freeze/thaw cycles | C1026 | As reported | Resistant |
| Warpage (edge) | C485 | Warpage ± 0.4% or ± 0.05 in | Comply with ANSI A137.1 |
| Warpage (diagonal) | C485 | Warpage ± 0.4% or ± 0.07 in | Comply with ANSI A137.1 |
| Wedging | C502 | ± 0.25% or ± 0.03 in | Comply with ANSI A137.1 |
| Chemical resistance | C650 | As reported | Unaffected |
| Breaking strength | C648 | 250 lbf or greater | Comply with ANSI A137.1 |
| Thickness | C499 | Range: 0.04 in | Comply with ANSI A137.1 |
| Resistant to thermal shock | C484 | As reported | Resistant |
| Resistance to stain | C1378 | As reported | Unaffected |
| DCOF Average | BOT 3000 test | ≥ 0.42 | ≥ 0.42 |
| Skid Resistance | DIN 51097 and DIN 51130 | - | - |
